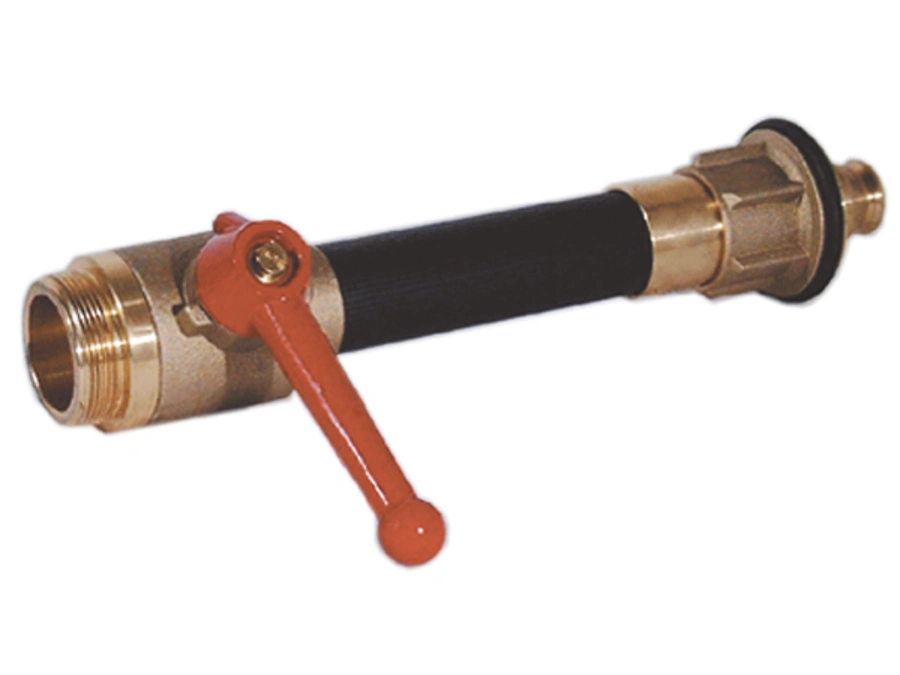

Jet/spray nozzle - Schott, CMM brass, 19 mm, w/o adaptor, 2" BSP male

Full description

The CMM branchpipes are available in sizes 2“ and 2½“. In order to protect the branchpipe operator against heat and smoke, it can set up a water curtain, in addition to the jet and spray water screen. The exit angle can be continuously changed from 0° to 160°.

• Flow rate:
  • at 2 bars - 300 l/min
  • at 4 bars - 425 l/min
  • at 5 bars - 475 l/min
  • at 6 bars - 520 l/min
  • at 8 bars - 600 l/min
• Throw distance:
  • at 4 bars - 30 m
  • at 5 bars - 32 m
• Throw height:
  • at 4 bars - 23 m
  • at 5 bars - 24 m
• Material: Brass
• Connection: 2" AG male BSP thread
• Dimension (hole): 22mm x 19 mm
• Approval: MED
