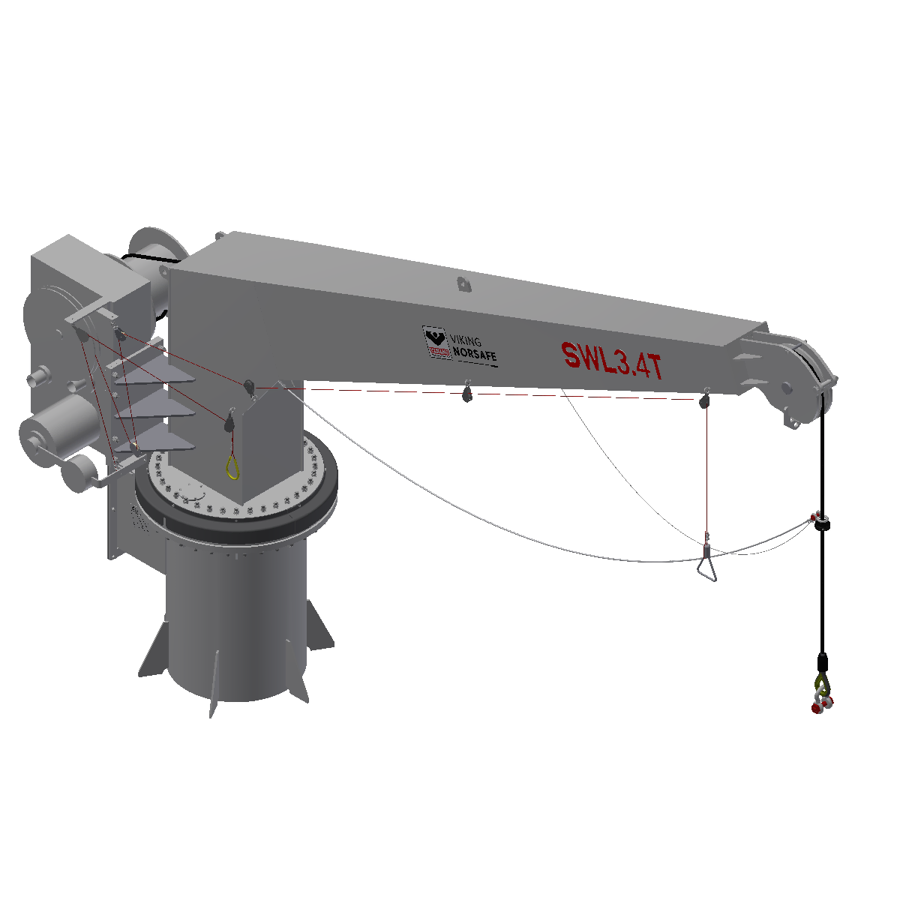

VIKING Norsafe NRC-R-34 MKI raft davit

Item number D00301020

The VIKING Norsafe NRC-R-34 slewing davit system is especially designed for safe and efficient launching of liferafts. The davit system is designed for long time operation in a tough and corrosive marine/offshore environment.

  • Manual slewing of the davit arm
  • Gravity lowering of the fully loaded raft
  • High-speed manually retrieval of the empty hook
  • Low-speed retrieval of the full load
Full description

Full description

Liferaft slewing davit designed and manufactured according to latest SOLAS/IMO requirements.

The davit is designed to achieve optimum performance in terms of safety and reliability, and minimal maintenance levels. All selected equipment is chosen and installed to ensure the lowest possible emission of sound and for good access for service and repair.

The lowering is based on gravity only, which allows full operation of the davit in “dead ship” conditions.

  • Safe Working Load (SWL): 3400 kg
  • Max. lowering height: 50 m
  • Operational temperature: -20°C to +45°C (others on request)
