Item number 1057956
The PLT® Mini is a lightweight shoulder launched line thrower. It is very popular among users both at sea and on land, who requires a mobile line thrower. We currently have 5 different projectiles that can be used in various types of operations with a wide range of lines.
Launch distance with a dry and clean 3.2mm line:
Mini-Rescue 100 - 100 meters
Mini-rubber – 90meters
Breaking strength 1580N (161kg)

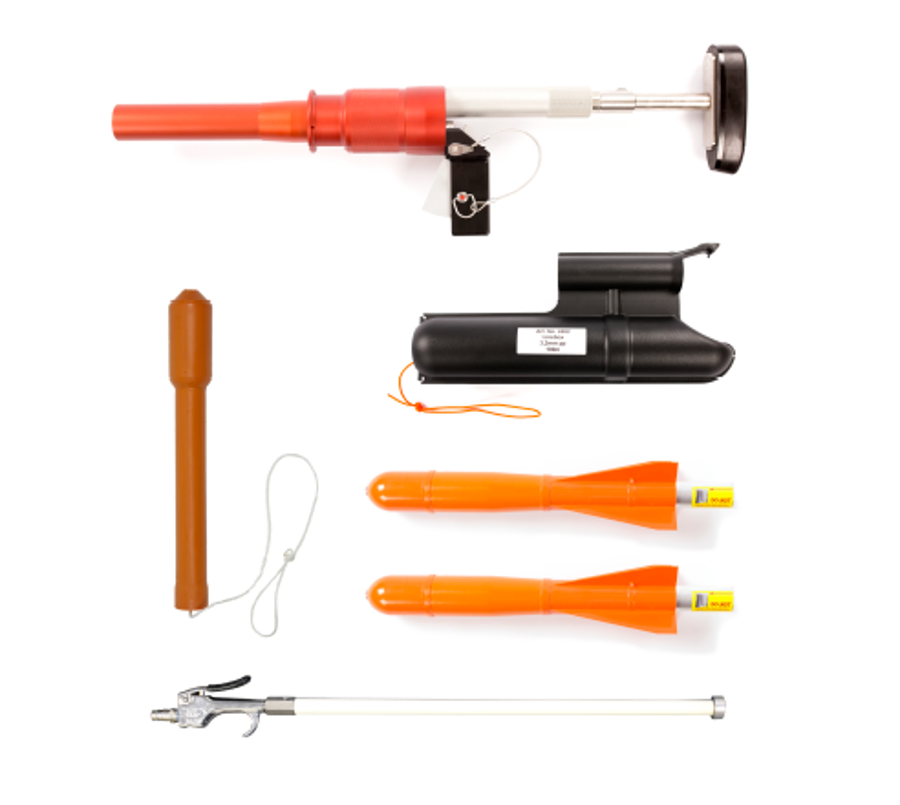

Content:
Art. No. 4000 - PLT® Mini
1 Art. No. 4020 PLT® Mini Launching Unit
2 Art. No. 4101 Projectile PLT® Mini Rescue 100
1 Art. No. 4102 Projectile PLT® Mini-Rubber
1 Art. No. 4200 Loading Device Projectile PLT® Mini Rescue 100
1 Art. No. 4202 Linebox 3,2mm PPL Line (standard).
1 User Manual
Operations
Heaving line for mooring ropes during STS operations.
Heaving line during towing operations
Heaving line during mooring vessel to port
Heaving line during rescue operations
Used by power companies to transfer cabling
Used in salvage missions
It is possible to fill the 100 projectile with Dyneema and reach 130 meters. Can be done on request.
