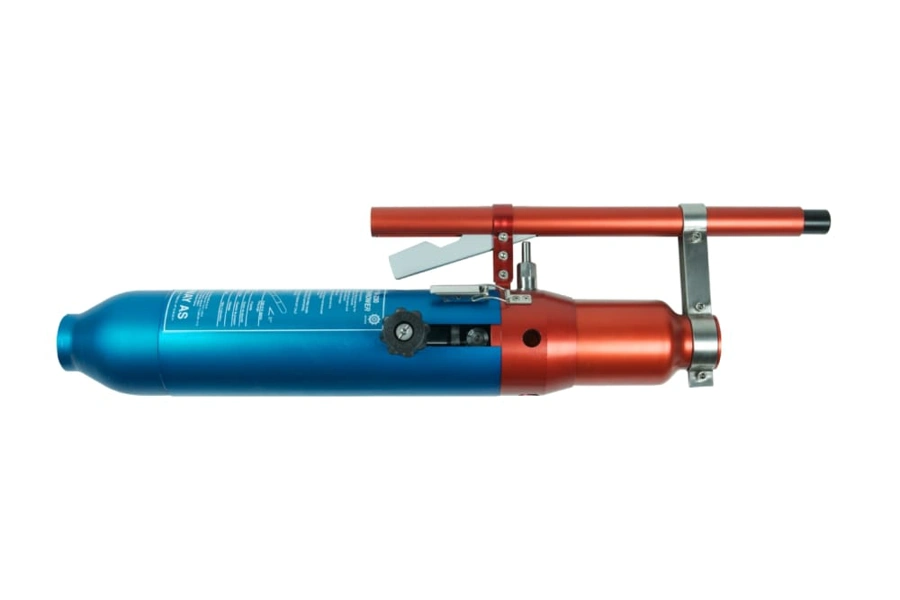

Launching unit, PLT multi, without cylinder and cover, art 1005

Full description

The PLT® Multi Launching Unit contains an air cylinder that charges the pressure chamber of compressed air up to 300 bars (4350psi). If the air cylinder is filled up to 300 bars (4350 psi), it will supply the base unit with enough air to perform 6 max pressure launches. Charged to 200 bars (2900 psi), you will have 4 max pressure launches.

For filling to 300 bars (4350 psi), simply connect the air cylinder to a standard scuba diving (breathing air) compressor with standard 5/8″ threads according to DIN 477.

For filling from a 200-bar compressor, Art. No. 1308 Yoke (DIN477) and claw adapter Art.no 1315 is needed to connect the Air cylinder and compressor.

The PLT® Launching Unit is not considered as dangerous goods.
